Part Number |
Description |
|
SmartRail Bases |
HE599ETX200 |

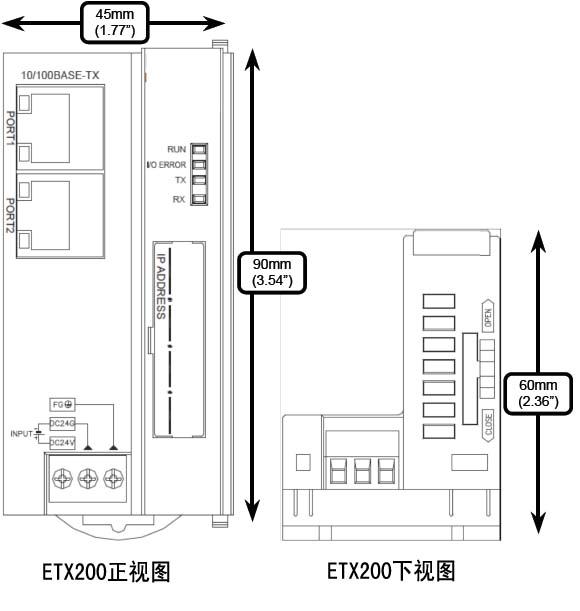

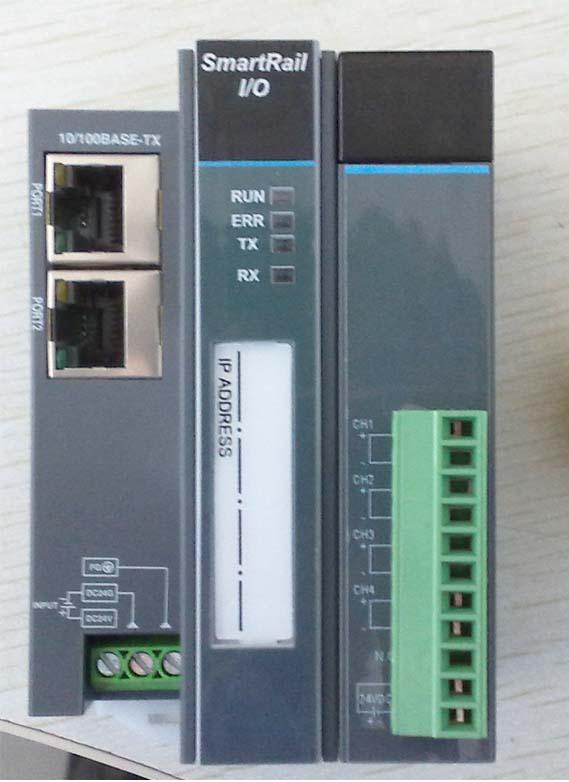

Ethernet Base. Compatible with XL6e, NX221/251, QX, RX, RCX. Features built-in unmanaged switch. Supports up to 8 I/O modules drawing up to 1.5A @ 5Vdc. Supports up to 256 digital and 32 analog I/O per base. Requires Cscape 9.1, and Firmware 12.70. |
HE599CNX100 |
CsCAN Base. Compatible with XLe, XLt, XL6, XL6m, XL6e, NX, QX, RX, RCX. Projected Availability Summer 2010. |
HE599PBX100 |
Profibus Base. Requires a Profibus Master, such as the SmartStack PBM650 module. Supports up to 8 I/O modules drawing up to 1.5A @ 5Vdc. Supports up to 256 digital and 16 analog I/O per base. |
|
|
|
SmartRail Ethernet cables |
HE599CBEnnn (nnn=length)
|
Available in 1, 2, 3, 6, 10, 15, 30 & 50 foot lengths (ie HE599CBE001 = 1 foot cable)
|
|
|
|

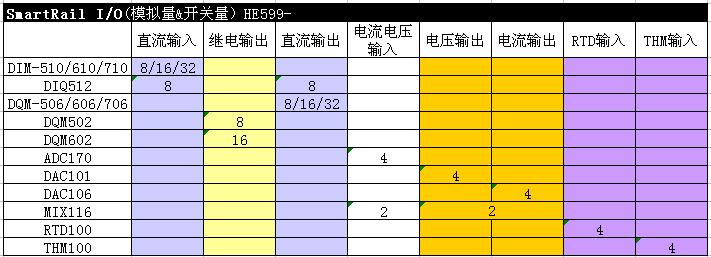

Digital Input Modules |
HE599DIM510 |
8 DC Inputs (24vdc pos/neg logic). |
HE599DIM610 |
16 DC Inputs (24vdc pos/neg logic). |
HE599DIM710 |
32 DC Inputs (24vdc pos/neg logic). SmartLink Expansion Cable and Terminal Strip recommended. |
|
|
|
Digital Input/Output Modules |
HE599DIQ512 |
8 DC Inputs (12/24vdc, pos/neg logic). 8 Relay Outputs (2A). |
|
Digital Output Modules |
HE599DQM506 |
8 DC Outputs (24vdc, pos logic, 0.2A) |
HE599DQM606 |
16 DC Outputs (24vdc, pos logic, 0.2A) |
HE599DQM706 |
32 DC Outputs (24vdc, pos logic, 0.2A). SmartLink Terminal Strip and Expansion Cable OR SmartLink Relay Output Strip and Expansion Cable recommended. |
HE599DQM502 |
8 Relay Outputs (125Vdc or 250Vac), 2A. |
HE599DQM602 |
16 Relay Outputs (125Vdc or 250Vac), 2A. |
|
|
|
Analog Input Modules |
HE599ADC170 |
4 channel Analog Inputs, 12-bit. Selectable channel-by-channel for 0-20mA, 4-20mA, 0-10V. |
HE599RTD100 |
4 channel RTD Inputs, 0.1°C. Supports Pt-100. |
HE599THM100 |
4 channel Thermocouple Inputs, 0.1°C (typical). Supports J, K, T, R |
|
|
|
Analog Input/Output Modules |
HE599MIX116 |
2 channel Analog Inputs + 2 channel Analog Outputs. 12-bit resolution, channel-by-channel selectable for 0-20mA, 4-20mA, 0-10V. |
|
|
|
Analog Output Modules |
HE599DAC106 |
4 channel Analog Outputs, 12-bit. Supports 0-20mA, 4-20mA |
HE599DAC101 |
4 channel Analog Outputs, 12-bit. Supports 0-10V. |
|
|
|
SmartLink Terminal Strips & Expansion Cables |
HE599TRM040 |
40pin DIN-rail mounted Terminal Strip for 32 point I/O modules. Requires 40pin Expansion Cable |
HE599CBL040 |
40pin Expansion Cable, 0.5m. Connects DIM706 or DQM706 to TRM040 |
HE599CBL240 |
40pin Expansion Cable, 2.0m. Connects DIM706 or DQM706 to TRM040 |
|
|
|
SmartLink Relay Output & Expansion Cables |
HE599RLY037 |
32pt DIN-rail mounted Socketed Relay Terminal Strip for 32 point DQM706 module. Requires Expansion Cable (below) |
HE599CBL037 |
Expansion Cable, 0.5m. Connects DQM706 to RLY037 |
HE599CBL237 |
Expansion Cable, 2.0m. Connects DQM706 to RLY037 |
